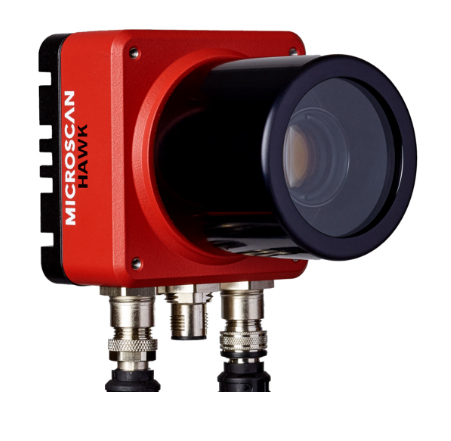

邁思肯Microscan HAWK MV-4000 智能相機
邁思肯Microscan HAWK MV-4000 智能相機
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載

    • HAWK MV-4000堅固的外殼內裝有令人驚嘆的處理能力和優異的靈活性。 這款智能相機采用FPGA，將上一代的處理能力提高了數倍，實現了實時觸發響應。擁有領先的算法，HAWK MV-4000可以成為各行業實現代碼閱讀，代碼驗證，檢查，引導定位，測量或各種組合功能的理想工具。

    HAWK MV-4000的以圖像為中心的用戶界面和拖放式編程使設置變得簡單。 普通的操作員或技術人員會喜歡直觀的AutoVISION用戶界面（UI），可以使用讀取，驗證和視覺工具隨時讀取。機器視覺方面的專家將可以訪問另一個名為FrontRunner的界面，以獲得HAWK MV-4000的全部潛力。

    擁有幾乎達到基于PC系統速度的處理能力，這個智能相機可以真正實現以一當十。 IVision的工程師們把它稱為基于PC的相機和市場上普通的智能相機之間的“黃金中心”。 使用HAWK MV-4000，不需要外部處理即可達到每分鐘4,000至14,000個零件的檢查率。



    邁思肯Microscan HAWK MV-4000 智能相機型號表
    Part NumberDescription
    8011-0000-0100HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV SENSOR
    8011-0000-0101HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV
    8011-0000-0102HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS
    8011-0000-0103HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VERIF/OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS+VERIF/OCV
    1.3 MP Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV SENSOR
    8012-0000-0101HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV
    8012-0000-0102HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS
    8012-0000-0103HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VERIF/OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS+VERIF/OCV
    2.0 MP Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV SENSOR
    8013-0000-0101HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV
    8013-0000-0102HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS
    8013-0000-0103HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VERIF/OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS+VERIF/OCV
    5.0 MP Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV SENSOR
    8014-0000-0101HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV
    8014-0000-0102HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS
    8014-0000-0103HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VERIF/OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS+VERIF/OCV
    0.3 MP Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV SENSOR
    8015-0000-0101HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV
    8015-0000-0102HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS
    8015-0000-0103HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VERIF/OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS+VERIF/OCV
    1.3 MP Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV SENSOR
    8016-0000-0101HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV
    8016-0000-0102HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS
    8016-0000-0103HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VERIF/OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS+VERIF/OCV
    2.0 MP Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV SENSOR
    8017-0000-0101HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV
    8017-0000-0102HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS
    8017-0000-0103HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VERIF/OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS+VERIF/OCV
    5.0 MP Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV SENSOR
    8018-0000-0101HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV
    8018-0000-0102HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS
    8018-0000-0103HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VERIF/OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS+VERIF/OCV




    HAWK 4000 LENSES AND LENS CAPS
    Standard Resolution for 2/3" Sensors - (General Inspection, Reading, Some Verification)
    98-9000167-01LENS, C-MOUNT, 6MM, STANDARD RES, 2/3" SENSOR
    98-9000168-01LENS, C-MOUNT, 9MM, STANDARD RES, 2/3" SENSOR
    98-9000169-01LENS, C-MOUNT, 12.5MM, STANDARD RES, 2/3" SENSOR
    98-9000170-01LENS, C-MOUNT, 16MM, STANDARD RES, 2/3" SENSOR
    98-9000171-01LENS, C-MOUNT, 25MM, STANDARD RES, 2/3" SENSOR
    98-9000172-01LENS, C-MOUNT, 35MM, STANDARD RES, 2/3" SENSOR
    High Resolution for 2/3" Sensors - (Gauging, Verification)
    98-9000192-01LENS, C-MOUNT, 6MM, HIGH RES, 2/3" SENSOR
    98-9000165-01LENS, C-MOUNT, 8MM, HIGH RES, 2/3" SENSOR
    98-9000166-01LENS, C-MOUNT, 12MM, HIGH RES, 2/3" SENSOR
    98-9000154-01LENS, C-MOUNT, 16MM, HIGH RES, 2/3" SENSOR
    98-9000164-01LENS, C-MOUNT, 25MM, HIGH RES, 2/3" SENSOR
    98-9000163-01LENS, C-MOUNT, 35MM, HIGH RES, 2/3" SENSOR
    High Resolution for 1" Sensors - (All applications. Required for 1" 5 MP Sensor)
    98-9000174-01LENS, C-MOUNT, 12.5MM, HIGH RES, 1" SENSOR
    98-9000175-01LENS, C-MOUNT, 16MM, HIGH RES, 1" SENSOR
    98-9000176-01LENS, C-MOUNT, 25MM, HIGH RES, 1" SENSOR
    98-9000177-01LENS, C-MOUNT, 35MM, HIGH RES, 1" SENSOR
    C-Mount Liquid Lens
    98-9000179-01LENS, LIQUID, C-MOUNT, F2.8/16MM, 2/3" SENSOR, I2C INTERFACE
    98-9000178-01LENS, LIQUID, C-MOUNT, F4/25MM, 2/3" SENSOR, I2C INTERFACE
    Lens Accessories
    98-9000155-01IP67 LENS COVER FOR HAWK 4000, 50MM LENGTH
    98-9000156-01IP67 LENS COVER HAWK 4000, 70MM LENGTH
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm




    HAWK 4000 CABLES, LIGHT CONTROL CABLE AND POWER SUPPLY
    HAWK 4000 X-CODE Ethernet Port Cables
    61-9000134-01CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 1 METER
    61-9000134-02CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 3 METER
    61-9000134-03CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 5 METER
    HAWK 4000 VGA/USB Port Connector Cables
    61-9000143-01 CABLE, HAWK 4000 M12 TO USB FEMALE, 1 METER
    61-9000147-01 CABLE, HAWK 4000 M12 TO VGA & USB, 1 METER
    HAWK 4000 Digital IO Port Connector Cables
    61-9000132-01CABLE, ADAPTER, HAWK 4000 TO ACCESSORY CABLES/POWER SUPPLY (Supplied with camera)
    61-9000151-01CABLE, HAWK 4000 M12 TO FLYING LEADS, 3 METER (NO ADAPTOR NEEDED)
    QX-1 Interface Cables and Accessories
    61-000162-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 1 METER
    61-000148-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 3 METER
    98-000103-02 QX-1 INTERFACE DEVICE
    99-000020-02 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 meter
    99-000020-01 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 meter
    20-610024-01 Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    SMART LIGHT CONTROL CABLES
    61-9000135-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, POWER, 1 METER
    61-9000136-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, ON/OFF, 1 METER
    61-9000137-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, STROBE, 1 METER
    61-000204-01 CABLE, QX-1 TO SMART LIGHT, CONTINUOUS POWER
    61-000207-01CABLE, QX-1 TO SMART LIGHT, ON/OFF
    61-000218-01* CABLE, QX-1 TO SMART LIGHT, STROBE
    Power Supply
    97-000012-01 Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket




    HAWK 4000 AND SMART LIGHT MOUNTS
    Standard Mounts
    TBDUNIVERSAL MOUNT, HAWK 4000
    98-9000054-01 APG MOUNT, HAWK 4000 (REQUIRES UNIVERSAL MOUNT)
    Smart Light/HAWK 4000 Mounting Kits
    98-9000120-01KIT, BRACKET, MAX 300 TO HAWK 4000
    98-9000121-01KIT, BRACKET, DOAL TO HAWK 4000
    98-9000122-01KIT, BRACKET, RING 60/70 TO HAWK 4000
    98-9000123-01KIT, BRACKET, RING 100 TO HAWK 4000
    98-9000137-01KIT, SMART SERIES PHARMALITE, ARCHERFISH




    LICENSING
    HAWK 4000 License Upgrades
    LIC-0700-003*LICENSE,MACHINE VISION,AUTOVISION
    LIC-0700-006*LICENSE,MACHINE VISION,VISIONSCAPE
    LIC-0700-009*LICENSE,MACHINE VISION,VERIFICATION/OCV
    LIC-0700-011*LICENSE,MACHINE VISION,AUTOVISION SENSOR
    LIC-0700-325*LICENSE,MACHINE VISION,MACHINE VISION UNLOCK




    Camera Kits - with License, Lens, IP Cover and Mount
    0.3 MP, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8111-1160-0102HAWK MV-4000-03, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 12.5MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8112-1250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, High Res Lens
    8212-2160-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2350-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8113-1350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, High Res Lens
    8213-2160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2250-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1160-0102HAWK MV-4000-20C, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1350-0102HAWK MV-4000-20C, AV+VS, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    5.0 MP, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 16MM 1" LENS, NO COVER, UNIVERSAL MOUNT
    8214-3250-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 25MM 1" LENS, IP COVER, UNIVERSAL MOUNT
    8214-3350-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 35MM 1" LENS, IP COVER, UNIVERSAL MOUNT


    型號

    HAWK MV-4000-03

    HAWK MV-4000-03C

    HAWK MV-4000-13

    HAWK MV-4000-13C

    HAWK MV-4000-20

    HAWK MV-4000-20C

    HAWK MV-4000-50

    HAWK MV-4000-50C


    傳感器

    品牌和型號

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    類型

    CMOS

    芯片尺寸

    1/4”-Type

    1/2”-Type

    2/3”-Type

    1”-Type

    格式

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    分辨率 (H x V)

    640 x 480

    1280 x 1024

    1920 x 1200

    2592 x 2048

    有效幀率

    最高 240 FPS

    最高 120 FPS

    最高 75 FPS

    最高 32 FPS

    最高 42 FPS

    最高 20 FPS

    最高 21 FPS

    最高8.5 FPS

    像素尺寸 (H x V)

    4.8 μm x 4.8 μm

    增益范圍

    0 至 19.4 dB

    快門速度

    50 μsec 至 4 sec

    觸發器響應

    外部觸發器輸出延遲 = 10μs。 抖動= 1 - 2μs。


    處理器，內存及存儲

    處理器

    雙核

    內存

    2GB RAM

    存儲

    32GB


    接口

    網絡

    千兆以太網

    HMI

    VGA 和 USB 2.0 (連接鍵盤和鼠標)

    數字 I/O

    3個光耦輸入（帶增量旋轉編碼器支持），1個專用光耦觸發，3個外部選通輸出

    其他

    Varioptic Caspian 自動對焦鏡頭專用接口


    機械，電氣，環保

    鏡頭類型

    C-Mount

    連接器

    M12 8針以太網插座; M12 12針插座，用于電源，數字I / O和LED照明強度控制; M12 12針插頭用于VGA和USB

    重量

    460 g

    能量消耗

    450 mA @ 24VDC 或 10.8W (一般情況)



    邁思肯Microscan HAWK MV-4000 智能相機附件表



    This section contains information about system components as well as information to help you connect the HAWK MV-4000 Smart Camera. Specific information describes connectors, adapters, cables, pinouts, and signals.
    HAWK MV-4000 Smart Cameras (All cameras ship with an adapter cable.)
    0.3 Megapixel Mono
    8011-0000-0100HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION Sensor
    8011-0000-0101HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION
    8011-0000-0102HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape
    8011-0000-0103HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Verification / OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION Sensor
    8012-0000-0101HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION
    8012-0000-0102HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape
    8012-0000-0103HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Verification / OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION Sensor
    8013-0000-0101HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION
    8013-0000-0102HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape
    8013-0000-0103HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Verification / OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION Sensor
    8014-0000-0101HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION
    8014-0000-0102HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape
    8014-0000-0103HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Verification / OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape + Verification / OCV
    0.3 Megapixel Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION Sensor
    8015-0000-0101HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION
    8015-0000-0102HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape
    8015-0000-0103HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Verification / OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION Sensor
    8016-0000-0101HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION
    8016-0000-0102HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape
    8016-0000-0103HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Verification / OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION Sensor
    8017-0000-0101HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION
    8017-0000-0102HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape
    8017-0000-0103HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Verification / OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION Sensor
    8018-0000-0101HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION
    8018-0000-0102HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape
    8018-0000-0103HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Verification / OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape + Verification / OCV
    HAWK MV-4000 Lenses and Lens Caps
    Standard Resolution for 2/3" Sensors (General Inspection, Reading, Some Verification)
    98-9000167-01Lens, C-Mount, 6 mm, Standard Resolution, 2/3" Sensor
    98-9000168-01Lens, C-Mount, 9 mm, Standard Resolution, 2/3" Sensor
    98-9000169-01Lens, C-Mount, 12.5 mm, Standard Resolution, 2/3" Sensor
    98-9000170-01Lens, C-Mount, 16 mm, Standard Resolution, 2/3" Sensor
    98-9000171-01Lens, C-Mount, 25 mm, Standard Resolution, 2/3" Sensor
    98-9000172-01Lens, C-Mount, 35 mm, Standard Resolution, 2/3" Sensor
    High Resolution for 2/3" Sensors (Gauging, Verification)
    98-9000192-01Lens, C-Mount, 6 mm, High Resolution, 2/3" Sensor
    98-9000165-01Lens, C-Mount, 8 mm, High Resolution, 2/3" Sensor
    98-9000166-01Lens, C-Mount, 12 mm, High Resolution, 2/3" Sensor
    98-9000154-01Lens, C-Mount, 16 mm, High Resolution, 2/3" Sensor
    98-9000164-01Lens, C-Mount, 25 mm, High Resolution, 2/3" Sensor
    98-9000163-01Lens, C-Mount, 35 mm, High Resolution, 2/3" Sensor
    High Resolution for 1" Sensors (All applications. Required for 1" 5 Megapixel Sensor)
    98-9000174-01Lens, C-Mount, 12.5 mm, High Resolution, 1" Sensor
    98-9000175-01Lens, C-Mount, 16 mm, High Resolution, 1" Sensor
    98-9000176-01Lens, C-Mount, 25 mm, High Resolution, 1" Sensor
    98-9000177-01Lens, C-Mount, 35 mm, High Resolution, 1" Sensor
    C-Mount Liquid Lens
    98-9000179-01Lens, Liquid, C-Mount, F2.8/16 mm, 2/3" Sensor, I2C Interface
    98-9000178-01Lens, Liquid, C-Mount, F4/25 mm, 2/3" Sensor, I2C Interface
    Lens Accessories
    98-9000155-01IP67 Lens Cover for HAWK MV-4000, 50 mm Length
    98-9000156-01IP67 Lens Cover HAWK MV-4000, 70 mm Length
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm
    HAWK MV-4000 Cables, Smart Series Illuminator Control Cable, and Power Supply
    HAWK MV-4000 X-CODE Ethernet Port Cables
    61-9000134-01Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 1 m
    61-9000134-02Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 3 m
    61-9000134-03Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 5 m
    HAWK MV-4000 VGA / USB Port Connector Cables
    61-9000143-01Cable, HAWK MV-4000 M12 to USB Socket, 1 m
    61-9000147-01Cable, HAWK MV-4000 M12 to VGA and USB, 1 m
    HAWK MV-4000 Digital I/O Port Connector Cables
    61-9000132-01Cable, Adapter, HAWK MV-4000 to Accessory Cables / Power Supply (Supplied with camera)
    61-9000151-01Cable, HAWK MV-4000 M12 to Flying Leads, 3 m (No Adapter Required)
    QX-1 Interface Cables and Accessories
    61-000162-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 1 m
    61-000148-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 3 m
    98-000103-02QX-1 Interface Device
    99-000020-02QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
    99-000020-01QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 m
    20-610024-01Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    Smart Series Illuminator Control Cables
    61-9000135-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Power, 1 m
    61-9000137-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Strobe, 1 m
    61-000204-01Cable, QX-1 to Smart Series Illuminator, Continuous Power
    61-000218-01*Cable, QX-1 to Smart Series Illuminator, Strobe
    Power Supply
    97-000012-01Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket
    HAWK MV-4000 and Smart Series Illuminator Mount
    Standard Mount
    98-9000054-01APG Mount, HAWK MV-4000 (Requires Universal Mount)
    Smart Series Illuminator / HAWK MV-4000 Mounting Kits
    98-9000120-01Kit, Bracket, MAX 300 to HAWK MV-4000
    98-9000121-01Kit, Bracket, DOAL to HAWK MV-4000
    98-9000122-01Kit, Bracket, Ring 60 / 70 to HAWK MV-4000
    98-9000123-01Kit, Bracket, Ring 100 to HAWK MV-4000
    98-9000137-01Kit, Smart Series Pharmalite, HAWK MV-4000
    Licensing
    HAWK MV-4000 License Upgrades
    LIC-0700-003*License, Machine Vision, AutoVISION
    LIC-0700-006*License, Machine Vision, Visionscape
    LIC-0700-009*License, Machine Vision,Verification / OCV
    LIC-0700-011*License, Machine Vision, AutoVISION Sensor
    LIC-0700-325*License, Machine Vision, Machine Vision Unlock
    Camera Kits with License, Lens, IP Cover, and Mount
    0.3 Megapixel, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8111-1160-0102HAWK MV-4000-03, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    1.3 Megapixel, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 12.5 mm Std. Lens, IP Cover, Universal Mount
    8112-1250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 25 mm Std. Lens, IP Cover, Universal Mount
    1.3 Megapixel, High Resolution Lens
    8212-2160-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8212-2250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8212-2350-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Megapixel, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 16 mm Std. Lens, IP Cover, Universal Mount
    8113-1350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 35 mm Std. Lens, IP Cover, Universal Mount
    2.0 Megapixel, High Resolution Lens
    8213-2160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8213-2250-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8213-2350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8117-1160-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    8117-1350-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 35 mm Standard Lens, IP Cover, Universal Mount
    5.0 Megapixel, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 16 mm 1" Lens, No Cover, Universal Mount
    8214-3250-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 25 mm 1" Lens, IP Cover, Universal Mount
    8214-3350-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 35 mm 1" Lens, IP Cover, Universal Mount

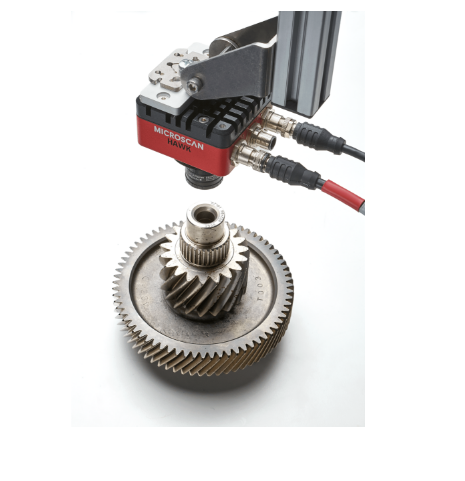

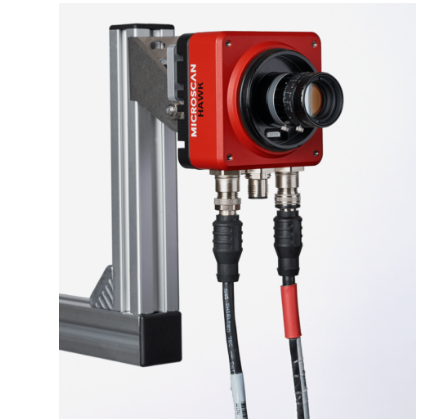

    邁思肯Microscan HAWK MV-4000 智能相機應用



    汽車零件，電子行業，制造行業，模具行業等

    相關產品

    相關文章

  • 工業讀碼器和工業相機的區別是什么？2021-02-03
    • 欧美极品少妇XXXXⅩ| 国产肉体XXXX裸体137大胆| 无码人妻一区二区三区免费手机| 韩国午夜理伦三级在线观看仙踪林 | 亚洲中文字幕一区精品自拍| 免费无码久久成人网站| 边做饭边被躁欧美三级| 无遮挡呻吟娇喘视频免费播放| 精品免费AV一区二区三区| …久久精品99久久香蕉国产| AV无码一区二区三区| 年轻漂亮的人妻被公侵犯BD免费 | 成人综合婷婷国产精品久久蜜臀| 熟女作爱一区二区视频| 黑人大战日本人妻嗷嗷叫| 中文人妻熟妇乱又伦精品| 日产无码精品一区二区三区| 国产精品无码成人午夜电影| 亚洲一区精品无码| 人妻无码熟妇乱又伦精品视频| 国产精品久久久久精品…| 亚洲无AV码一区二区三区| 人妻 日韩 欧美 综合 制服| 国产精品VA在线播放| 亚洲啪AV永久无码精品放毛片| 女技师强制高潮18XXXX按摩| 国产AV成人精品播放| 亚洲人成色4444在线观看| 欧美日韩精品视频一区二区| 国产精品久久久久9999不卡| 亚洲中文字幕无码一区| 人妻无码一区二区不卡无码AV| 欧美成人AA久久狼窝五月丁香| 99国产精品自在自在久久| 天天躁日日躁狠狠躁AV麻豆| 久久久久精品国产三级美国美女| 宝贝真乖四人一起NP| 亚洲AV无一区二区三区久久| 男人把大JI巴放进女人有视频 | 免费女人高潮流视频在线观看| 丰满人妻被两个按摩师| 亚洲熟妇无码AV在线播放| 日本三级黄色视频| 精品97国产免费人成视频| YY6090青苹果影院| 亚洲AV实录无码成人精品电影 | 精品人妻中文无码AV在线| YY8090理论三级在线观看| 亚洲AV永久无码精品无码网站| 女性自慰网站免费观看W| 国产免费久久精品国产传媒| 2021国内精品久久久久精免费| 婷婷亚洲综合五月天小说| 老司机久久一区二区三区| 国产成人午夜福利不卡在线观看 | 精品国产乱码久久久久软件 | 99V久久综合狠狠综合久久| 污污网站18禁在线永久免费观看| 老少配XXOO老少配| 国产精品久久久久7777| 3D动漫精品啪啪一区二区免费| 无码专区AAAAAA免费视频| 男人吃奶摸下挵进去好爽| 国产午夜不卡AV免费| FREE性中国熟女HD| 亚洲精品无码AⅤ中文字幕蜜桃 | 欧美成人一区二区三区不卡| 国产人与Z0XXⅩⅩ另类| CC小恩雅透明内抹油的使用方法| 亚洲AV无码一区二区三区网站 | 再深点灬舒服灬太大了添动视频| 手机免费AV片在线观看| 蜜臀av免费一区二区三区观看| 国产精品狼人久久久久影院 | 亚洲综合色成在线观看| 熟妇高潮精品区一区二区三| 美女把尿口扒开让男人桶| 国产女人乱子对白AV片| STEAMWORKSHOP魅魔| 亚洲人成无码网在线观看APP| 色欲av夜夜嗨av性色av| 麻豆星空精东天美MV| 国产午夜鲁丝片AV无码免费| 把腿张开老子cao烂你n视频| 亚洲熟妇AV日韩熟妇AV| 无码AV蜜臀AⅤ色欲在线| 欧美成人少妇人妻精品视频| 精品国产亚洲第一区二区三区| 成人无码一区二区三区网站| 在C点用力把桌腿A抬离地面时游| 香港三日本三级少妇三级2021| 热RE99久久精品国产99热| 久久久受WWW免费人成| 国产剧情MV天美传媒| 被男狂揉吃奶胸60分钟视频| 伊人久久大香线蕉综合影院| 性高朝久久久久久久3小时| 日本免费一区二区三区最新VR| 久久精品国产一区二区电影| 麻豆产精国品一二三产区区| 欧美成人家庭影院| 欧美一区二区在线视频| 日本妞vs黑人巨大XXXXX| 丰满少妇人妻无码| 97电影九七电影理论片| 亚洲人成网站在线在线观看| 无码AV天堂一区二区三区| 人妻丰满熟妇AⅤ无码无码区免费| 久久精品免费观看国产| 国产无遮挡又黄又爽在线观看| 成熟人妻换╳╳╳╳| 43417大但人文艺术| 亚洲色偷偷综合亚洲AV78| 西西人体艺术图片| 少妇色欲av永久性精品爽妇| 欧美成人免费观看在线看| 久久久久久亚洲AV无码专区| 国产最变态调教视频| 国产成人精品午夜福利在线播放| JΑPΑN丰满人妻HDXXXX| 治愈系恋人 电视剧| 亚洲精品有码在线观看| 小受叫床高潮娇喘嗯啊MP3| 色天使综合婷婷国产日韩AV| 欧美人与牲动交a欧美精品| 乱码一线二线三线新区破解版| 精东传媒剧国产MV的特点| 国产乱码一区二区三区| 丰满人妻一区二区三区视频53| PITBULL的妻子| 69国产成人综合久久精品| 艳妇乳肉豪妇荡乳ⅩXXOO小说| 亚洲AV午夜精品一区二区三区| 无码高清一区二区三区| 少妇久久久久久人妻无码| 人人爽人人爽人人片AV| 欧美乱大交XXXXX潮喷| 免费国产黄网站在线观看视频| 久久精品国产亚洲AV无码娇色| 黑人与人妻无码中字视频| 国产乱人伦偷精品视频免下载| 高潮久久久久久久久不卡| 成年奭片免费观看视频天天看 | 精品久久人人爽人人玩人人妻| 国产婷婷成人久久Av免费高清| 国产成人精品一区二区三区无码 | 欧美日韩国产A∨| 毛片无遮挡高清免费| 久久无码成人影片| 久久国产热这里只有精品| 精品国产YW在线观看| 和朋友换娶妻一起换着高清| 国产无人区码SUV| 国产精品丝袜无码不卡一区| 国产成人免费无码AV在线播放| 顶级欧美RAPPER| 粗大的内捧猛烈进出在线视频| 边做饭边被躁BD苍井空小说 | BT天堂新版中文在线地址| 18禁免费无码无遮挡不卡网站| 中文成人久久久久影院免费观看| 永久黄网站免费视频性色| 一本大道无码日韩精品影视_| 亚洲午夜国产精品无码| 亚洲午夜无码毛片av| 亚洲无线码高清在线观看| 亚洲日韩精品无码专区网站| 亚洲日韩精品一区二区三区无码| 亚洲乱人伦中文字幕无码| 亚洲日本一线产区二线产区| 亚洲另类无码专区丝袜| 亚洲乱码AV中文一区二区| 亚洲人成图片小说网站| 亚洲一区二区三区无码蜜桃| 亚洲一区二区三区香蕉| 一区二区中文字幕最近第九页| 一女被两男吃奶玩乳尖| 在线观看无码AV网站永久| 18日韩xxxx| JAPANESEHD国产在线看| 宝贝感受到它在爱你吗病娇小说 | 免费观看的国产大片APP下载 | 精人妻无码一区二区三区蜜桃| 久久精品AⅤ无码中文字字幕重口| 久久精品人妻一区二区三区一| 久久人人爽人人爽人人片AV高请| 老头霸占人妻中文字幕 | 极品粉嫩小泬50P| 精品少妇人妻Av免费久久农村| 久久精品国产亚洲AV水果派| 久青草国产97香蕉在线视频| 免费观看羞羞的事情网站| 欧美成人国产精品视频| 人妻免费久久久久久久了| 日韩视频在线观看| 偷窥熟女大屁股对白视频| 亚洲AV日韩AV蜜桃在线播放| 亚洲男人综合久久综合天堂| 一区二区精品视频| 99无人区码一码二码三码...|
